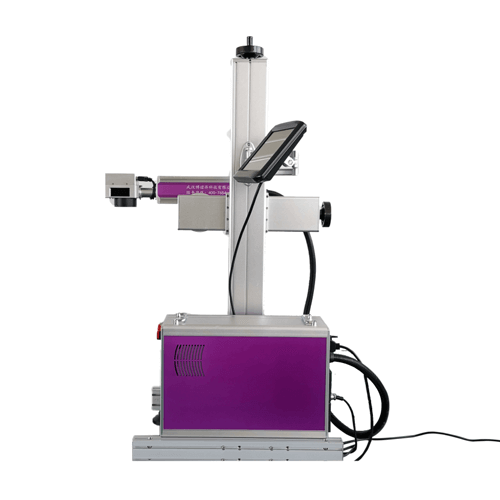

Fiber Laser Marking Machine Price
Flying Laser Marking Machine
High Speed Laser Marking Machine
| Technical parameters: | |
|---|---|
| Product name: | BNS-F-20/30W（FLY） |
| Laser power: | 20W 30W (optional) |
| Frequency: | 20KHz-80KHz |
| Marking area: | 70*70mm/110*110mm/ 140*140mm (70-300mm optional) |
| Marking color: | black, white, colored(according to material) |
| Output power of laser: | 10%~100% continuously to be adjusted |
| Cooling mode: | air cooling |
| Communication interface: | USB |
| Wavelength: | 1064nm |
| Minimal character: | 0.15mm*0.15mm |
| Marking depth: | 0-2mm(according to material) |
| Repeated accuracy: | 0.002mm |
| Working condition: | humidity 5%-75%, free of condensed water |
| Marking format: | graphics, text, bar codes, two-dimensional code etc. |
| Scanning head: | high speed optical scanning galvanometer |
| Focus assistance: | double red pointer combined in head |
| Warranty: | 12 months |
| Optional: | rotary device, moving table, other customized equipment |
Product Features
01 Raycus or IPG Laser Source
Applying the most advanced laser source in China,
Lifetime up to 100,000 hours
02High Speed Galvanometer
Advanced digital speed scanning galvanometer is used to make sure
of quick speed without deviation, small volume and high stability
03High-quality F-theta Lens
To form quick and precise focusing
04 Power Supply
To provide power for Galvanometer and Control Board ,
Low working temperature to protect the machine
05 Lifting Handle Design
Both vertical and horizontal shake hand wheels to adjust laser focus distance conveniently
06 Red-Ray Pointer
Latest red-ray preview technology, no need to worry about the marking focusing any more
07 LCD Screen Control System
Set circuit, controller and laser at an organic unity.
Smart and safe .
Dust-free.
08 Professional Marking Software
Special marking software has already been installed.
Simple as you edit messages on mobile.
Samples
Apply
|
01 Eletronic components-Optical Fiber Laser Marking Machine |
02 Mechanical parts -Marking Laser Machine |
03 Mechanical parts -Machine Laser |
04 Daily necessaries-Fibre Laser Marking Machine |
05 Digital electronic-Industrial Marking Machine |
06 Jewerly |
07 Medical-Industrial Laser Printer |
08 Beverage-RF tube laser printer |
09 Apparatus and meter-Fiber Laser Marking Machine For Metal |
AL-Fiber Laser Marking Machine |
Clothes-Fiber Laser Coder |
Industrial laser printer |
Metal-Fiber Laser Marking Machine For Metal |
Paper- Optical Paper Fiber Laser Marking Machine |
Pe-Code Marking Machine |
PP-Cable Laser Marking Machine |
PVC-Fiber Laser Code |
Stainless steel-Portable Laser Marking Machine |
